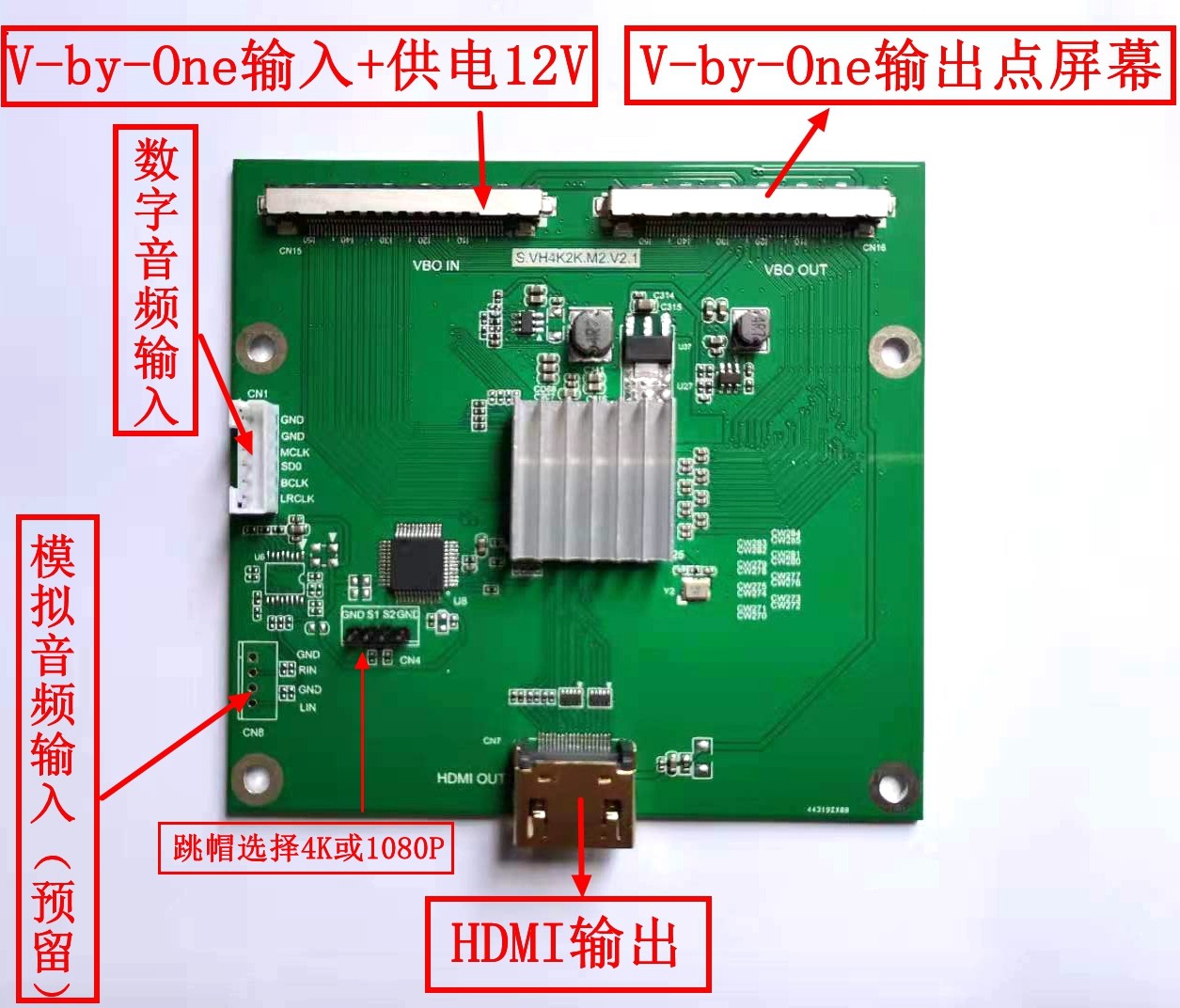

The S.VH4K2K.V2.0 board is a V-by-One signal bridge plus HDMI output adapter board developed by our company to solve the problems of electronic blackboards, large conference flat panels, 4K large screens, 4K driver board applications, etc. It can light up the original 4K screen and add an additional 4K HDMI signal output. The V-by-One to HDMI adapter board can be used in education systems, conference systems, commercial displays, matrices, advertising machines, medical displays, etc. This product supports software and hardware customization and debugging.

The features are as follows:

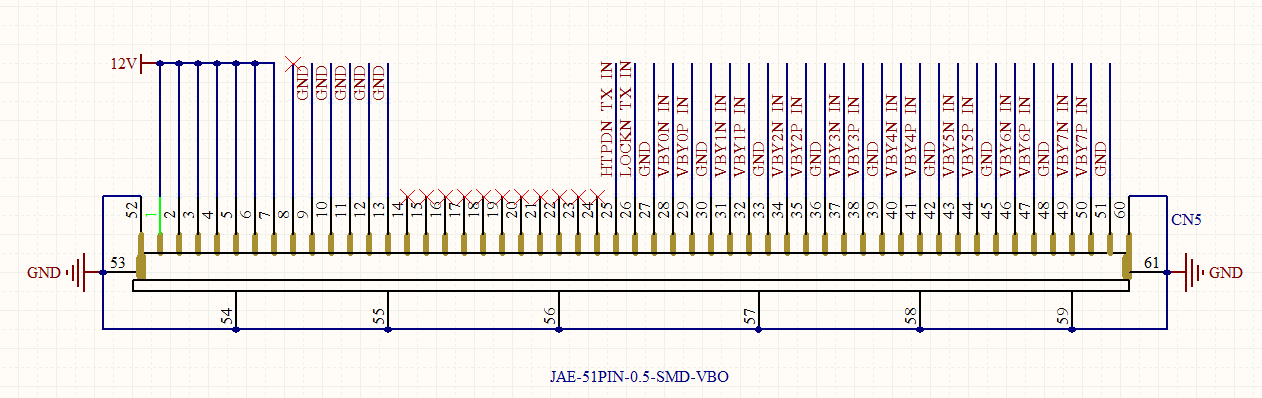

1. V-by-One input supports 8Lane single partition, V-by-One output supports 8Lane single partition or dual partition;
2. HDMI output supports 4K2K 1080P resolution; HDMI output supports jumper to select resolution, default priority output 1080P@60Hz, and can also output 4K60HZ through jumper.
3. Support SPDIF digital audio input, audio is mixed to HDMI output. It can also support analog stereo input.
4. No need to supply power separately, directly take power from V-by-One input screen line.
