EDP to HDMI output EDP/DP to HDMI adapter board supports multiple resolution standards 720P1080P
[EDP to HDMI output EDP/DP to HDMI adapter board supports multiple resolution standards 720P1080P]

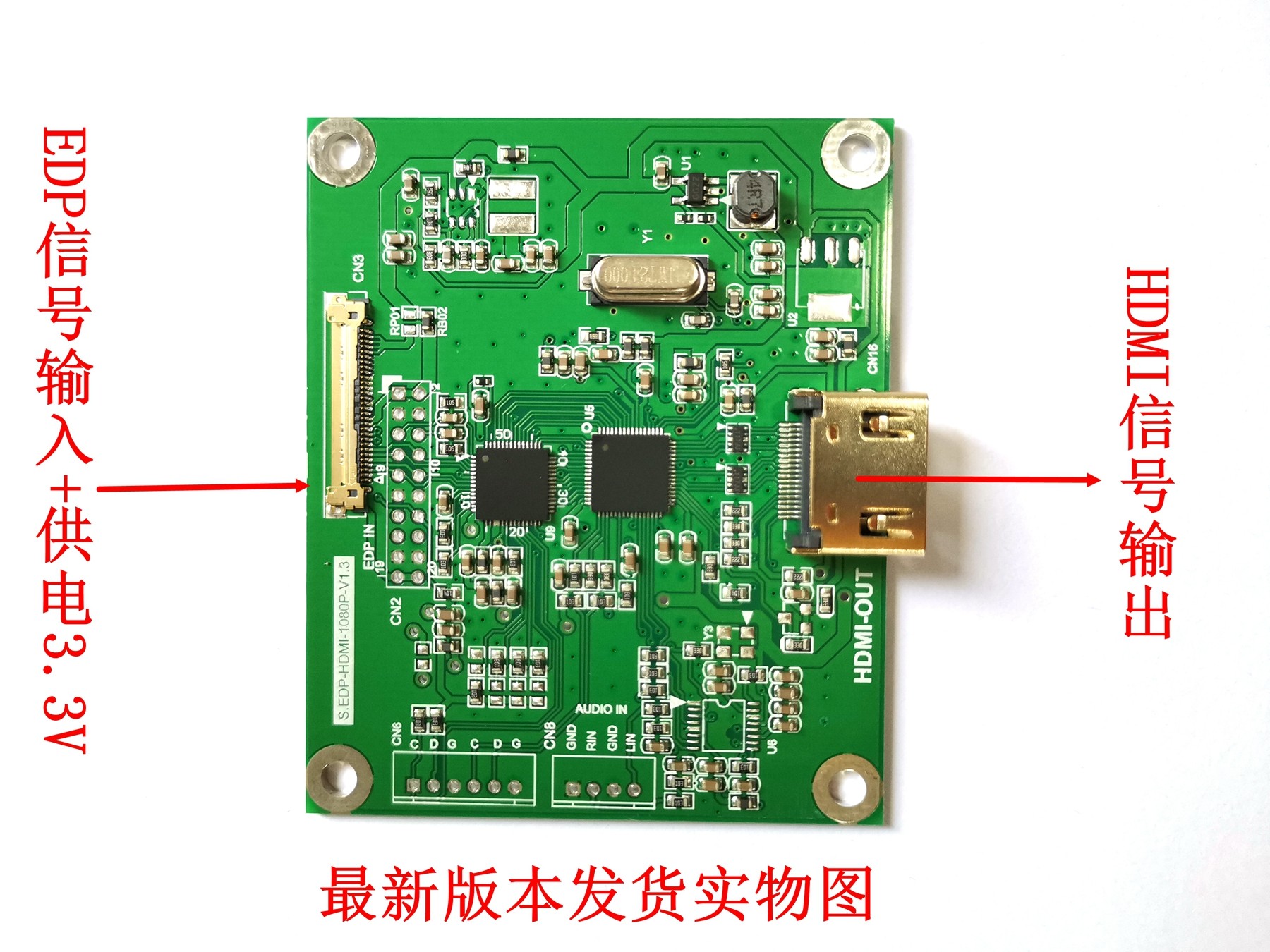

EDP ??to HDMI adapter board, the HDMI output resolution follows the input EDP signal. For example, if the EDP input is dual 8 1920*1080, the adapter board needs to upgrade the dual 8 program, and the adapter board HDMI output is 1920*1080. If the EDP input is single 8 1366*768, the adapter board needs to upgrade the single 8 program, and the adapter board HDMI output is 1366*768. The adapter board has two programs, single 8/dual 8. Please contact customer service for confirmation before purchasing the adapter board. The default is dual 8. The adapter board is powered by the EDP screen drive voltage 3.3V

1lane and 2lane display
